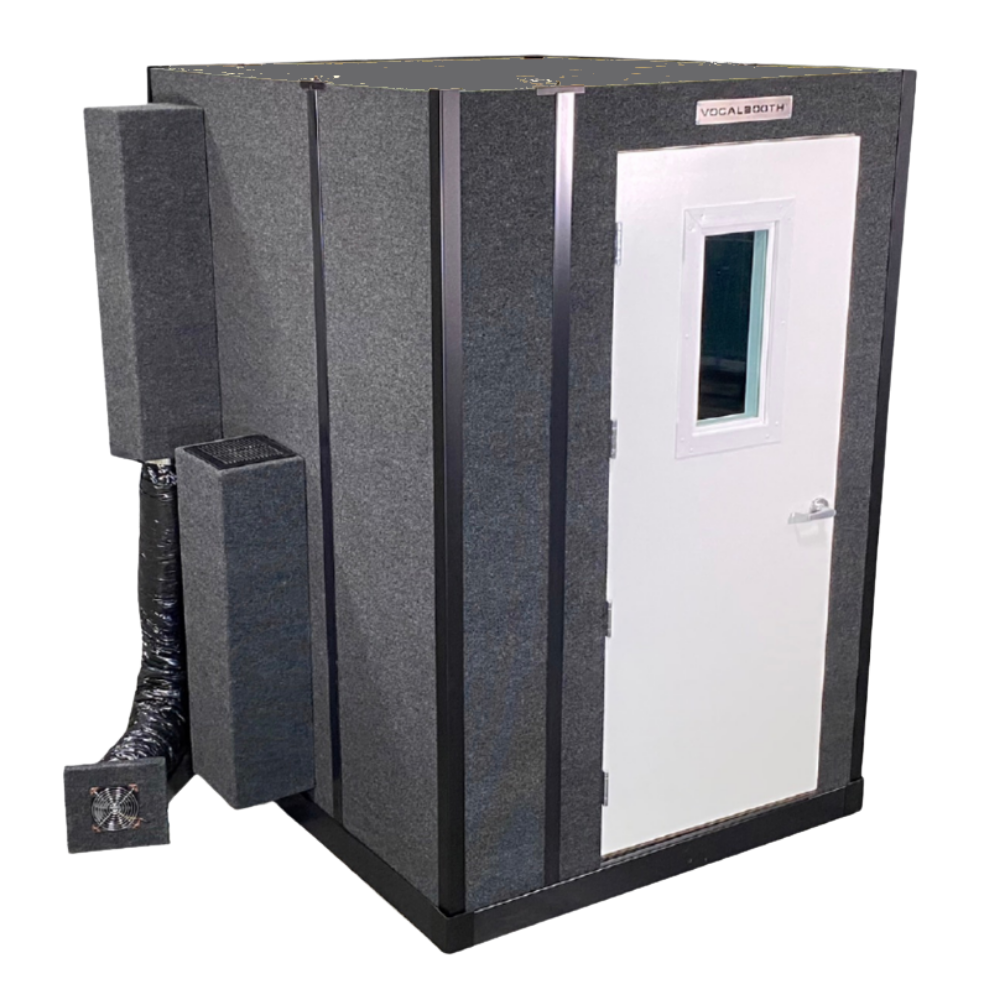

Platinum Series VocalBooth

Double-Wall for Increased Isolation

Recommended for those who want significant sound isolation, the double-wall VB Platinum Series with an acoustic fabric wrapped interior is our premium sound reduction VocalBooth. Choose the size you need—for vocals a 4' x 6' may be right but to give you the elbow room you need, for multiple musicians or a full drum set, the VB Platinum Series can be increased up to a 16' x 32'.

The VB Platinum Series' unique sub-floor acts as a separator between the booth and the preexisting room for reduced low frequency reverberation. Add a window for clear communication between talent and engineer. The Platinum Series size can also be modified.

Standard Includes

Optional Includes

Specifications

Exterior Height: 91 inches (2.31m)

Interior Height: 82 inches (2.08m)

Height w/ Casters: 95 inches (2.41m)

Wall Thickness: 3 inches (7.62cm)

Click for Sizing Diagrams

Decibel Reduction Specs* (Accurate to +/- 3dB)

Frequency ( Hertz )    125      200   500   1,000   2,000   4,000
Reduction ( dB )          29       36       44        46      48           65

*VocalBooth offers the highest level of sound reduction in the industry. Some competitors use impractical testing methods to inflate their sound reduction numbers. In direct on-site comparisons VocalBooth outperforms (reduces sound) more effectively than any other maker of a similar product - Click here to see how we test

Cableports: 1 to 8

Lighting: 120 Volt Fixtures (US Only)

Assembly Time: 1 to 1.5 hours for a 4' x 4'

Vent Systems: 1-4 Units

Sizes: 4'x4' up to 16'x32'.

Door: The Platinum Series comes with our proprietary 78" x 32" x 1 3/4", solid wood door. Solid feel and triple seals set our door apart from the competition. Customers can choose from either a left or right out swing.

Colors: Standard is our executive gray acoustic felt interior and executive gray fabric exterior. Additional interior treatments and exterior colors are available.

STC Rated Windows: Available window sizes for the Platinum Series are a 1' x 2' door window, a 2' x 2.5' door window, a 3' x 3' wall window, or a 6' x 3' wall window. Windows are STC Rated. Door Windows: STC 40, Wall Windows STC 38
