Diamond Series VocalBooth

Non-parallel Walls

Designed to utilize the corner of your room—we created a pentagonal shaped VocalBooth™. Our five-sided Diamond Series provides a space saving solution for tight quarters. This unique design has non-parallel walls to reduce standing waves. It is available in four sizes and comes in either our Gold or Platinum wall construction.

The Diamond Series is available with all the standard features of the Gold Series including wall-to-wall acoustic foam or the Platinum Series version which has a fabric wrapped interior.

Contact us today to find the right VocalBooth™ for your needs!


Diamond Gold Series (Single-Wall)

Gold - Standard Includes

Gold - Optional Includes

Gold - Specifications

Exterior Height: 88 inches (2.24m)

Interior Height: 82 inches (2.08m)

Height w/ Casters: 92 inches (2.34m)

Wall Thickness: 3 inches (7.62cm)

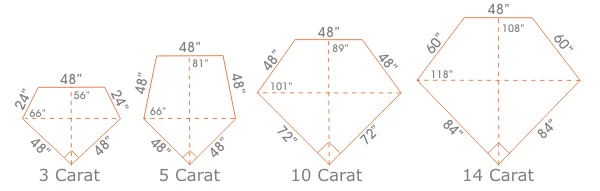

Click for Sizing Diagrams

Decibel Reduction Specs* (Accurate to +/- 3dB)

Frequency ( Hertz )    125      200   500   1,000   2,000   4,000
Reduction ( dB )          27       28       31        42      40           44

*VocalBooth offers the highest level of sound reduction in the industry. Some competitors use impractical testing methods to inflate their sound reduction numbers. In direct on-site comparisons VocalBooth outperforms (reduces sound) more effectively than any other maker of a similar product - Click here to see how we test

Cableports: 1 to 8

Lighting: 120 Volt Fixtures (US Only)

Assembly Time: 1 to 1.5 hours for a 4' x 4'

Vent Systems: 1-4 Units

Sizes: 4'x4' up to 16'x32'.

Door: The Gold Series comes with our proprietary 78" x 32" x 1 3/4", solid wood door. Solid feel and triple seals set our door apart from the competition. Customers can choose from either a left or right out swing.

Colors: Standard is our executive gray convoluted foam interior and executive gray fabric exterior. Additional interior treatments and exterior colors are available.

STC Rated Windows: Available window sizes for the Gold Series are a 1' x 2' door window, a 2' x 2.5' door window, a 3' x 3' wall window, or a 6' x 3' wall window. Windows are STC Rated. Door Windows: STC 38, Wall Windows STC 40

Diamond Platinum Series (Double-Wall)

Platinum - Standard Includes

Platinum - Optional Includes

Platinum - Specifications

Exterior Height: 91 inches (2.31m)

Interior Height: 82 inches (2.08m)

Height w/ Casters: 95 inches (2.41m)

Wall Thickness: 3 inches (7.62cm)

Click for Sizing Diagrams

Decibel Reduction Specs* (Accurate to +/- 3dB)

Frequency ( Hertz )    125      200   500   1,000   2,000   4,000
Reduction ( dB )          29       36       44        46      48           65

*VocalBooth offers the highest level of sound reduction in the industry. Some competitors use impractical testing methods to inflate their sound reduction numbers. In direct on-site comparisons VocalBooth outperforms (reduces sound) more effectively than any other maker of a similar product - Click here to see how we test

Cableports: 1 to 8

Lighting: 120 Volt Fixtures (US Only)

Assembly Time: 1 to 1.5 hours for a 4' x 4'

Vent Systems: 1-4 Units

Sizes: 4'x4' up to 16'x32'.

Door: The Platinum Series comes with our proprietary 78" x 32" x 1 3/4", solid wood door. Solid feel and triple seals set our door apart from the competition. Customers can choose from either a left or right out swing.

Colors: Standard is our executive gray acoustic felt interior and executive gray fabric exterior. Additional interior treatments and exterior colors are available.

STC Rated Windows: Available window sizes for the Platinum Series are a 1' x 2' door window, a 2' x 2.5' door window, a 3' x 3' wall window, or a 6' x 3' wall window. Windows are STC Rated. Door Windows: STC40, Wall Windows STC38
